Economical, reliable, tried and tested, robust...

Single and multiple telescopes are possible, making it extremely flexible in width and cleaning depth.


Mobile execution makes it particularly suitable for narrow spaces.

Choose a product from the range Economical, reliable, tried and tested, robust...
"light"
Stationary
Mobile
Back to products and solutions
Previous product
Next product

Stationary Telescope Trash Rake Cleaning Machine

Various possible applications with diverse screening discharge systems.

  • Flexible uses.
  • Extremely maintenance-friendly.
  • Durable, robust, and reliable.

Do you have questions about our product or want to place an order?
Contact us - our competent staff will be pleased to advise you!


YouTube - Putzzyklus einer Teleskoprechenreinigungsmaschine

Projects (5)

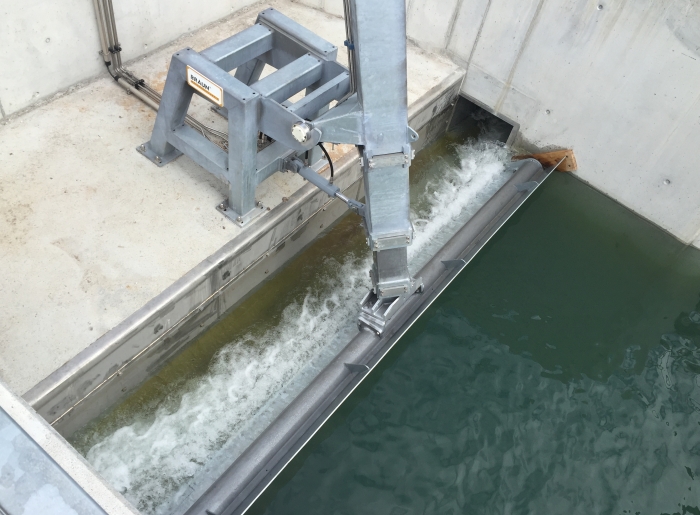

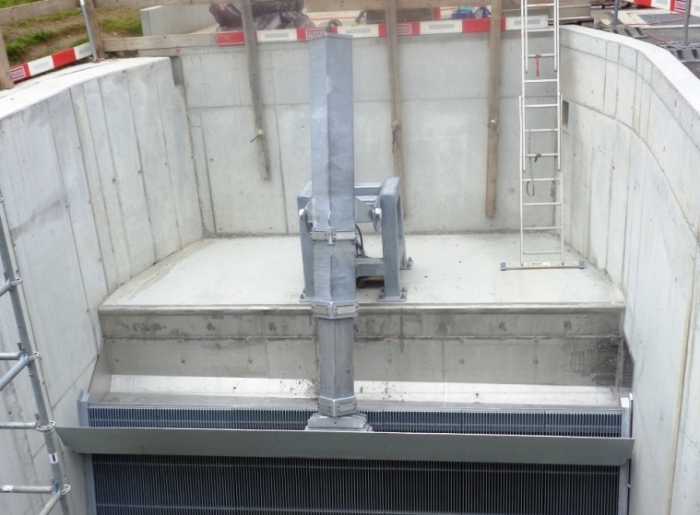

BKW – TCRM Laubeggfall – Switzerland

Telescope trash rake cleaning machine with overflowed flushing channel and the possibility for fish to bypass.



This trash rake cleaning machine's specially developed cleaning rake is constructed in a way that allows for the water to back up in the upper area of the intake screen through the a decreased speed. The debris is removed downstream without the help of a flushing pump via the surge of the "overstow" and the suction from an open flush sluice at the end of the flushing channel.



The raking system makes it possible for the fish to swim downstream over the overflowing flushing channel and the Dotations opening.

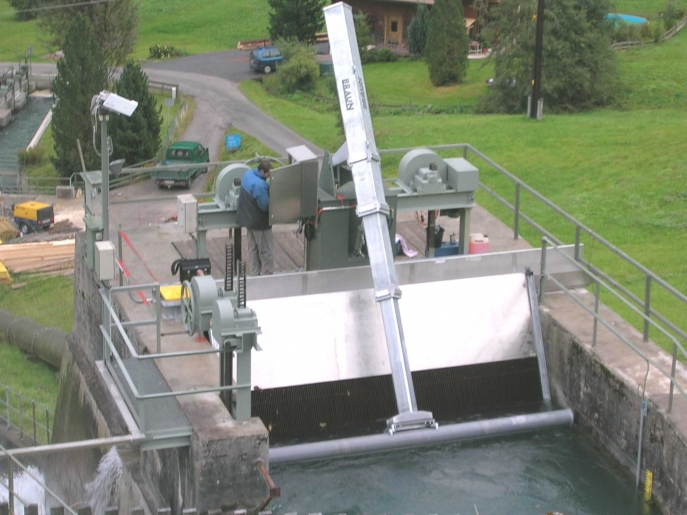

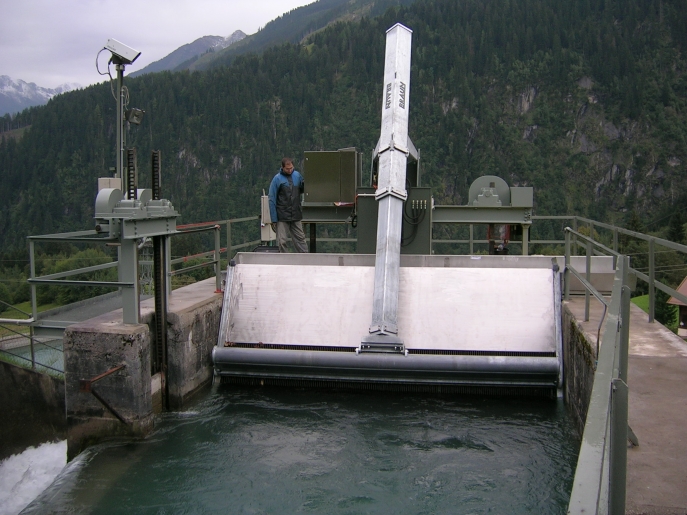

Verbund – Tuxbach Power Plant – Austria

Hydraulic telescope trash rake cleaning machine with flushing channel and scraper for putting the debris in a container.



The necessary hydraulic unit is located on the machine portal.

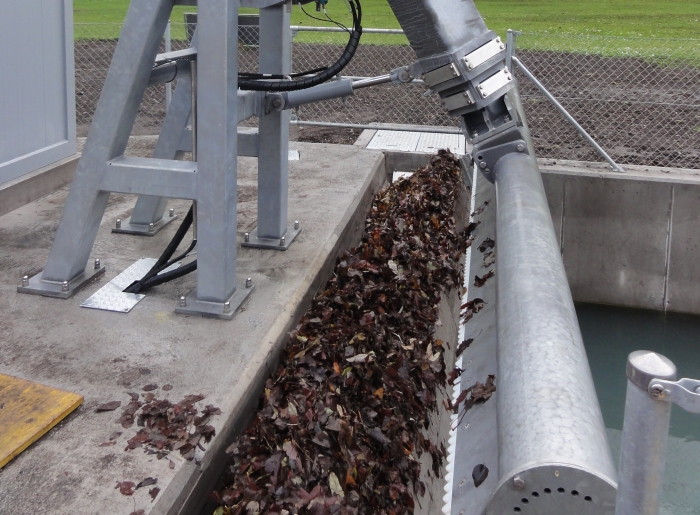

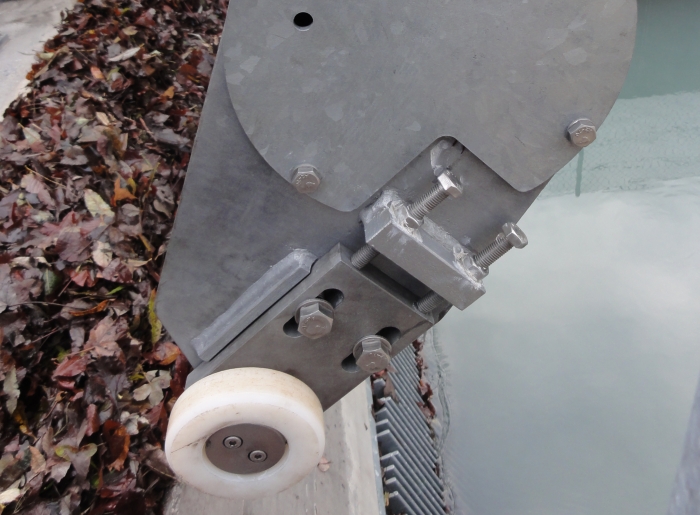

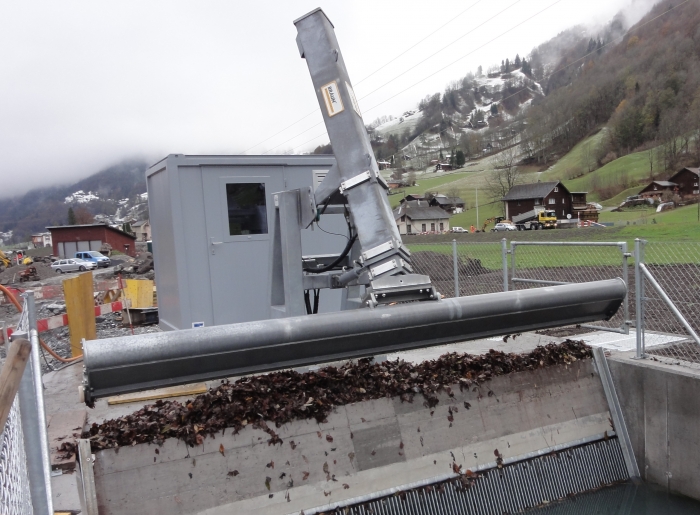

Weseta Kraftwerke AG – Hinterdorf Power Plant – Switzerland

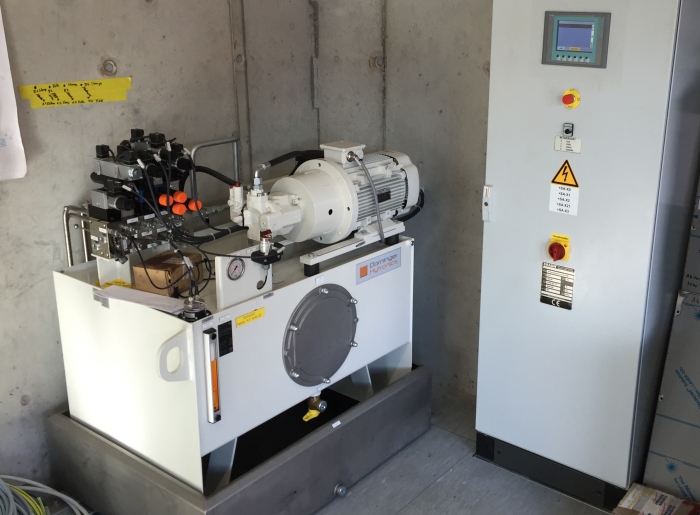

Hydraulic telescope trash rack cleaning machine with a flushing channel and a flushing pump, including a control container which houses the hydraulic unit and the control cabinet.

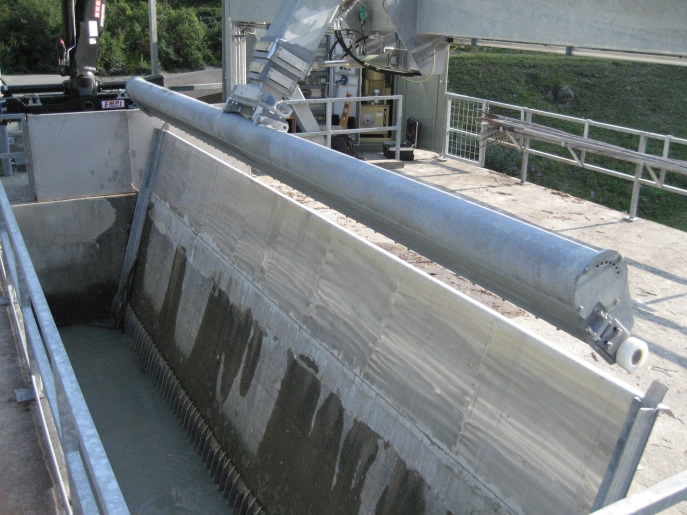

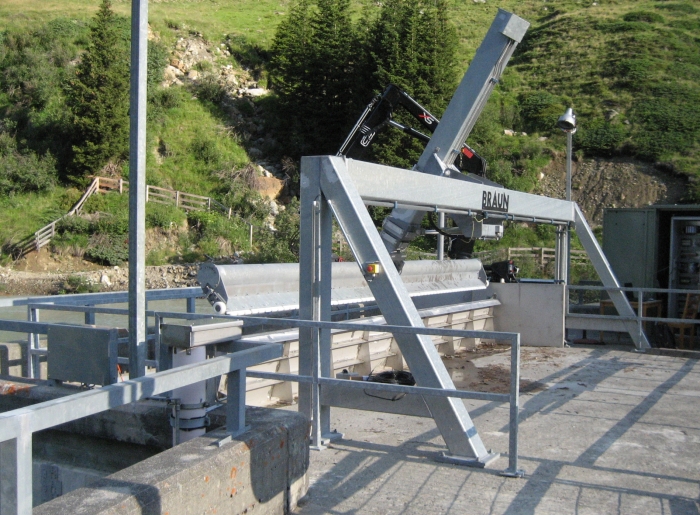

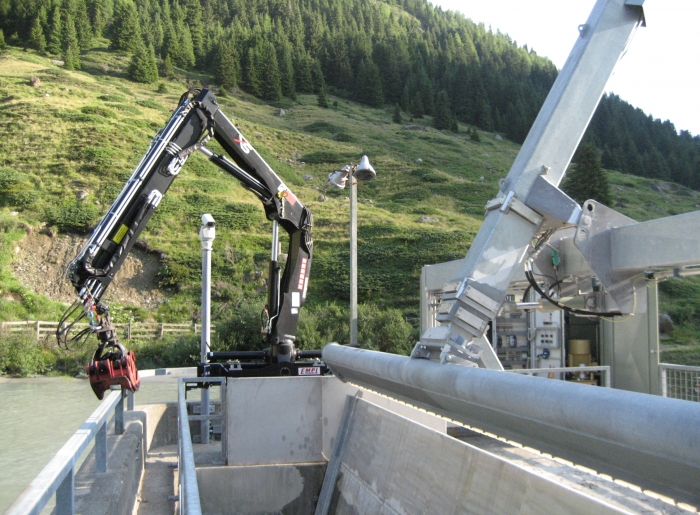

Tiwag – Taschachbach Power Plant – Austria

Hydraulic telescope trash rake cleaning machine with a portal frame and control container which houses the hydraulic unit and the control cabinet.

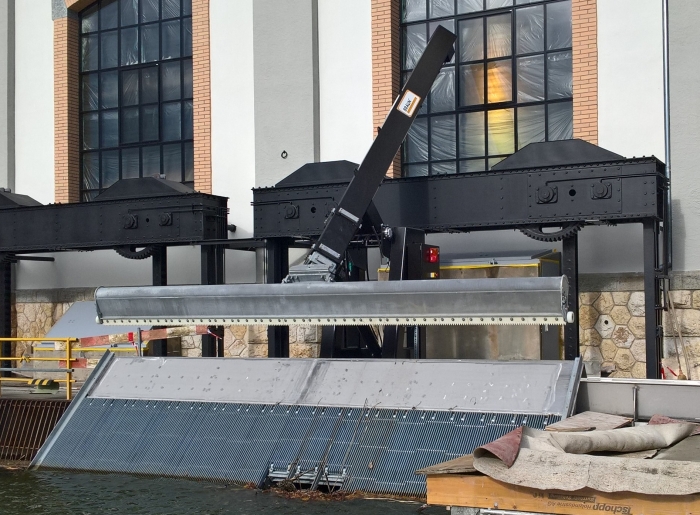

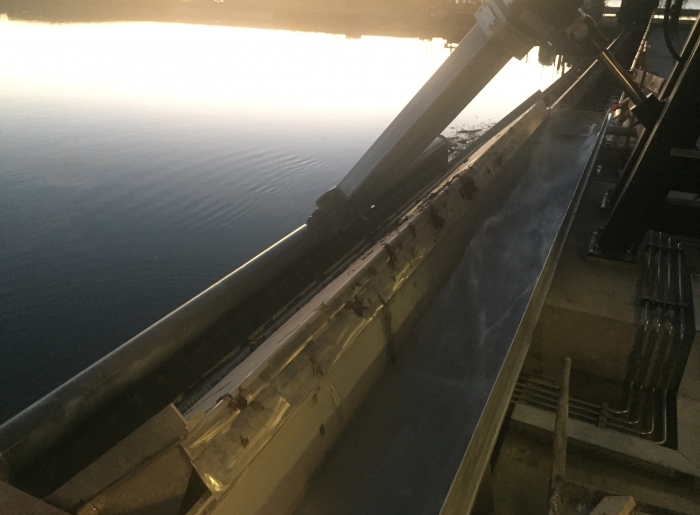

BKW – Hagneck Power Plant – Switzerland

The special, flat design makes it possible for the fish to travel upwards to the opening of the intake screen where they can continue to swim downstream.
