Modular System

These brilliant modular systems open up a range of new possible applications for specialists, avoid high investment costs, and considerably reduce assembly time. Thanks to modular construction, existing machines can be used for new purposes. This system is not only attractive for drilling and sawing professionals but can also be utilized for other purposes. Sawing cuts and drill holes can also be added to components for which a direct attachment to the component is not possible.

Choose a product from the range Modular System

BBZ1

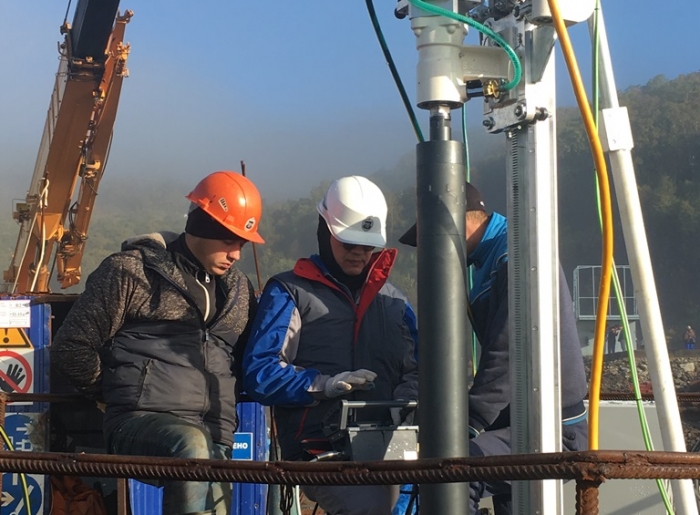

The single-column version of the modular system for drilling.

Various feed drives are available for your tasks: from manual to hydraulic. The wall saw rails serve as the basis through which this system can also be implemented for vertical wall saw cuts, often without dowels.

Do you have questions about our product or want to place an order?
Contact us - our competent staff will be pleased to advise you!

Technical Data

max. drill bit diameter 500 mm
max. drill bit length approx. 2000 mm

Accessories

  • Various feed drives
    • electric
    • pneumatic
    • hydraulic
  • Gewindestreben für Deckenabstrebung
  • Pivotable drilled brackets
  • Rails up to 2250 mm
  • Drill motor recording
  • Bezel for core bits
